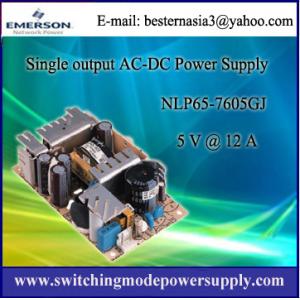

Emerson (Artesyn) NLP65-7605GJ Single Output AC-DC Power Supply

Emerson (Artesyn) NLP65-7605GJ Single Output AC-DC Power Supply

Emerson (Artesyn) NLP65 Series

Specifications

• Total Max Power: 75 W
• Total Max Current: 12 A
• Input Voltage: 85 V to 264 V
• Output Voltage: -15 V to 24 V
• Outputs: Single, Dual, Triple
• Size (L x W x H): 5.000" x 3.000" x 1.300"
• Warranty: 2 years
• Operating Temperature: 0 to +70°C

Electrical Specifications

Input

• Input current: 120 Vac, with PFC 1.05 A rms
• Safety ground: 120 Vac, 60 Hz 0.7 mA
• Input fuse: UL/IEC127 T6.3 AH, 250 Vac In live and neutral
• Input current: 120 Vac, 17 A max.
• Input frequency range: 47 - 63 Hz
• leakage current: 230 Vac, 50 Hz 1.4 mA
• Input voltage range: 85 - 264 Vac

Output

• Overvoltage protection: Main outputs 125%, ± 10%
• Temperature coefficient: ± 0.02%/°C
• Short circuit protection: Cyclic operation Continuous
• Total regulation (line and load): Main output ± 2.0%
• Transient response: Main output 5.0% or 250 mV
• Rise time: At turn-on 1.0 s, max
• Minimum output current: Single and multiple

Special Features

• Universal Input
• 3" x 5" footprint
• Low profile fits 1U applications
• EN61000-3-2 compliance option (HCC)
• Overvoltage and short circuit protection
• 65 W with free air convection cooling
• EN55022, EN55011 conducted emissions level B
• EN61000-4-2, -3, -4, -5, -6 immunity compliant
• RoHS compliant
• LPX80 enclosure kit available
• 2 year warranty
